Portable Induction Brazing Equipment for Copper Pipes | IGBT Technology
  • Portable Induction Brazing Equipment for Copper Pipes | IGBT Technology
  • Portable Induction Brazing Equipment for Copper Pipes | IGBT Technology
Lieu d'origine Shenzhen Chine
Nom de marque Canroon
Certification CE ISO9001
Numéro de modèle CR2100
Quantité de commande min 1 morceau
Prix Negotiable price
Détails d'emballage étui en bois, carton ou personnalisé
Délai de livraison La plupart des articles sont en stock pour l'ordre de l'échantillon dans les 7 jours pour l'expéditi
Conditions de paiement L / C, T / T, Western Union, Paypal
Capacité d'approvisionnement 2000 pièces par semaine
Détails sur le produit
Type de machine Machine de chauffage par induction Lieu d'origine Guangdong, Chine
brand name Canroon Vidéo sortante inspection Fourni
Composants de base PLC, roulement, équipement Points de vente clés Multifonctionnel
Produit Machine de brasage à induction numérique à chauffage par induction IGBT Application chauffage en métal, soudure, etc.
Pouvoir 10~800KVA Refroidissement Refroidissement de l'eau
Mettre en évidence

portable induction brazing equipment

,

copper pipe brazing machine

,

IGBT induction heating machine
Description de produit

Brief introduction of

New Generation | Intelligent | Digital | Induction Heating | CR2100 system

Your reliable heating expert in 21Century



Description:
This digital induction brazing machine features a built-in chiller, requiring no external water cooling system. Its mobile design with wheels and lifting hook makes it ideal for difficult-to-reach or water-shortage worksites.

The machine supports both manual operation with a flexible HHT (hand-held torch) and automatic production with a robot arm. The modular IGBT design ensures energy-saving performance, easy maintenance, and a long lifespan. Inductors are customizable and detachable for various applications.

Key Specifications:

  • Model: [Your Model Number]

  • Cooling System: Built-in Water Chiller

  • Control System: Digital IGBT

  • Design: Modular, Mobile with Wheels

  • Operation: Manual (HHT) & Automatic (Robotic Arm Compatible)

  • Application: Copper Pipe Welding, Brazing, Heating

  • Feature: Energy Saving, Easy Maintenance, Custom Inductors

Brand Canroon (manufacturer)
Model CR2100-
Tech digital control | module design | induction heating
Control Mode power control mode | temperature control mode
Heating Material

all metal:

iron, steel, copper, brass, zinc, aluminum, silver, gold, etc
Applications brazing, curing, hardening, annealing, shrink fitting, etc



Typical brazing case:

short circuit ring, copper wire / tube, rotor bar, heat exchanger, etc



Advantages of Canroon CR2100 series product:

1. various model for choice

Split type is provided to work with your current chiller.

All-in-one type is designed with built-in chiller, no need for external cooler, less space;

2. high temp | fast heating

Able to reach above 1000℃ within seconds, save our precious time, improve your work efficiency;

3. easy operation

CR2100 can be easily start/stop manually, and scan on workpieces surface to do local heatng.

It can also be integrated into robot arm to serve automatic line.

4. HHT

Compact design, easy to handle for manual work, easy to be integrated into robot arm for automatic work;

5. inductor (detachable | replaceable)

Canroon provided high-standard customized inductor to CR2100 induction generator, to help you deal with workpieces of different shap&size.

6. water cooling

For long service life;

7. accurate controllable heating

Local heating, controllable procedure (temperature-time, or power-time);

8. self-diagnosis

35 fault code and 11 alarm code display for faults like over current, over voltage, phase loss, short circuit, earth leakage, high temperature of heatin sink/capacitor, cooling fault, etc.

9. fault protection & logging

Fault code will display and be recorded for reference, and system will recpond with protection action like shutdown once fault occures such as open-loop or short out.

Easy for maintenance.



Model Type:

Type Power Dimension Chiller | water cooling
Portable Type 10|20|30|40|50|60 KVA

591.0*282.0*339.0 mm

621.4*282.4*349.4 mm

 external
All-in-one Type 10|20|30|40|50|60 KVA

1102*668*1238.0 mm

1483*904*1363.5 mm

 built-in
Cabinet Type 80~800 KVA

542*525*1250 mm

737*656*1750 mm

1080*815*1930 mm

 external

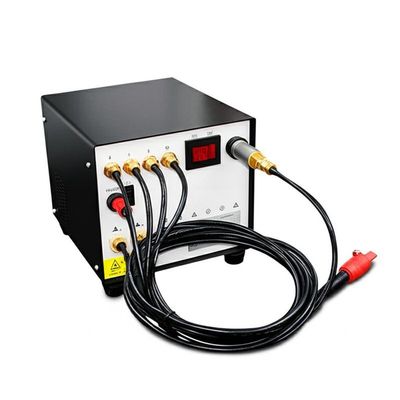

Model Pictures:

Portable Induction Brazing Equipment for Copper Pipes | IGBT Technology



Applications:

CR2100 servies brazing job of many copper parts in motor, heating exchanger, compressor, etc

Portable Induction Brazing Equipment for Copper Pipes | IGBT Technology





HHT (hand held transformer) & Inductors

HHT is designed with coaxial transformer, for your easy manual manipulation, and also can be integrated into robot arm for automatic production.

Induction coils / inductors (detachable) are easy for assemble and dismantle from HHT, so you can connect with different coil for different workpieces.



Portable Induction Brazing Equipment for Copper Pipes | IGBT Technology



Two control keys:

1. trigger: pull to start heating, loose to stop heating;
2. button: lock the trigger (pull the trigger and press the button,heating will be continuous.

Portable Induction Brazing Equipment for Copper Pipes | IGBT Technology



FAQ



1. Are you a trading company or manufacturer?

We are a leading manufacturer of induction heating machine & VFD, located in Shenzhen, China.

2. What information should I provide when making enquiry? How to confirm the suitable equipment and solution for me?

Please provide detailed information including:

(1) application ___;

(2) workpiece: material___, dimension___, heating area___,pictures&drawing___;

(3) heating requirement: max. heating temp___, heating rate___, etc;

(4) local electricity supply for equipment running: ___V, ___Hz.

3. What's the leading time for one set, and larger quantities?

Normally we have stock of the induction heating power source, but customized inductor/coils require 15 working days.

4. What's your quality guarantee period?

12 months warranty.

5. Can I have a sample tested, and visit your factory?

We welcome you to send us sample for heating test, and will offer you test video and data.

Your visit will be highly welcomed. We will guide you through our production line, PCB & machine test procedures, burn-in room, and make heating demo for you.

6. What is your company's expect for business cooperation?

Canroon is looking forward to have a solid long-term business cooperation with you, and will offer you our continuously support in various ways.

7. What many series product do you offer in induction heating?

Canroon developed different induction heating equipment for different applications and industies.



  Power Application Industries
CR2000

5/10/15/20/

40/80/120KVA

Welding Preheat,

PWHT,

joint anti-corrosion coating

Oil & gas,

on-shore & off-shore project,

pipeline & power plant construction / repair
CR2100 10~800KVA Brazing / annealing / hardening / shrink fitting / straightening / curing various
CR210C 30/60KVA Coating removal

Oil&gas pipelines

Storage tanks

Ship/marine
CR210D 40KVA Bolt untighten High pressure turbine



  Power Application Industries
CR1000 40~800KVA

Forging | smelting | casting

furnace

Forging | smelting | casting

Crystal growth | fiber drawing
CR1300 5~100KVA pelletizer | extruder | injection molding | film blowing | dryer

Plastic machinery

Chemical fiber equipment

Food and drug

Steam and hot air generation
CR1400 12/15KVA aluminum profile die heating aluminum profile
CR1500 6~100KVA Heating boiler Heating boiler
